105952-2731 ZEXEL F 01G 29N 0J5 BOSCH ACTUATOR f01g29n0j5 1059522731




Information actuator

BOSCH F 01G 29N 0J5 f01g29n0j5
ZEXEL 105952-2731 1059522731
105952-2731 ACTUATOR
Rating:
15
Buy ACTUATOR 105952-2731 zexel genuine, new aftermarket engine parts with delivery

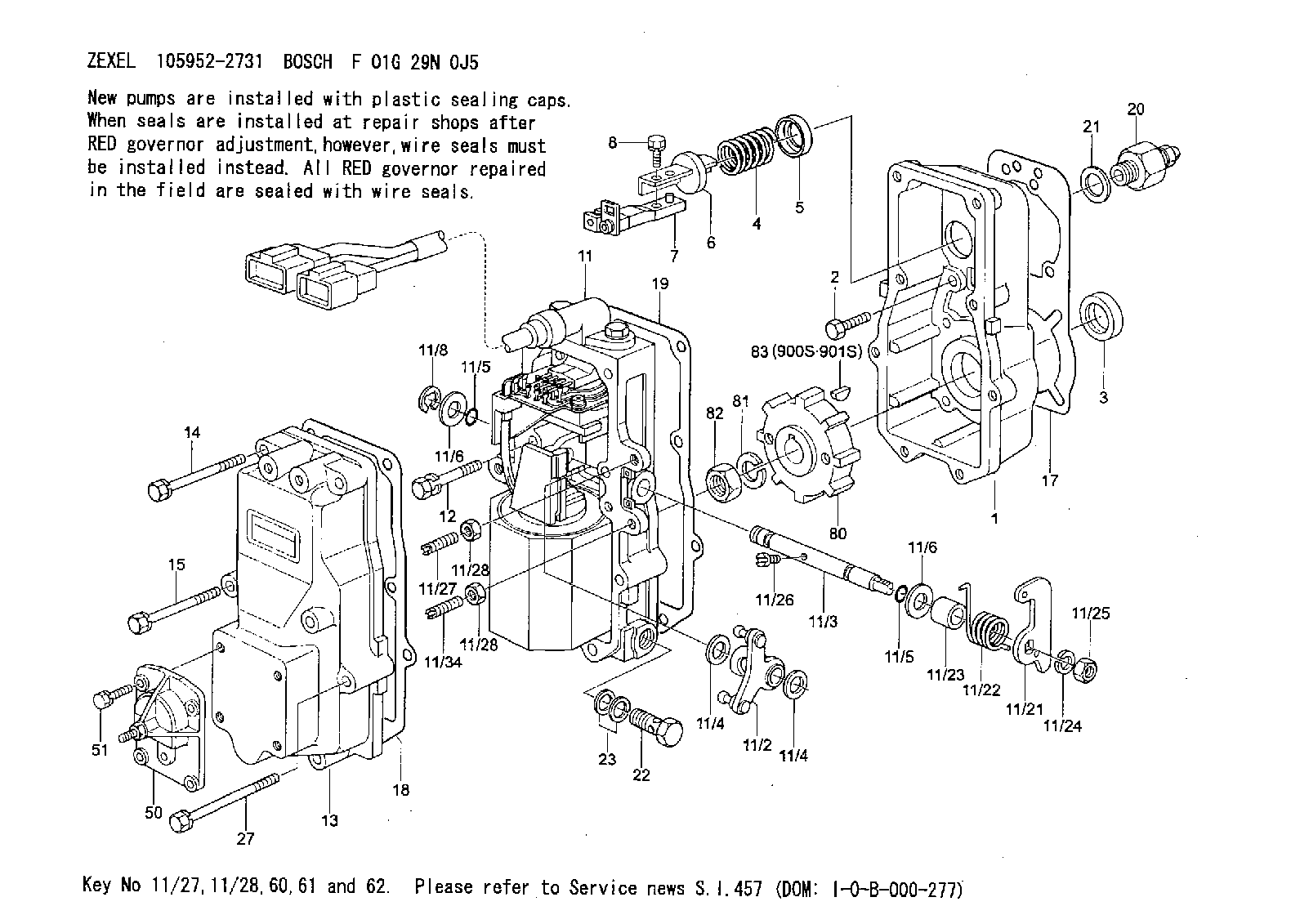

Scheme ###:

1. [1] 159560-0100 GOVERNOR HOUSING
2. [8] 139006-4100 BLEEDER SCREW
3. [1] 029621-7050 PACKING RING
4. [1] 159564-0000 COILED SPRING
5. [1] 159564-4000 SLOTTED WASHER
6. [1] 159635-8800 SLOTTED WASHER
7. [1] 159636-4521 CONNECTOR
7B. [1] 159636-4621 CONNECTOR
7C. [1] 159636-4721 CONNECTOR
8. [1] 020105-1240 BLEEDER SCREW
11. [1] 159579-5521 ACTUATOR
11/2. [1] 159636-5020 STRAP
11/3. [1] 159563-1700 LEVER SHAFT
11/4. [2] 029311-0170 SHIM
11/4. [2] 029311-0170 SHIM
11/5. [2] 016500-0710 O-RING
11/5. [2] 016500-0710 O-RING
11/6. [2] 014011-0140 PLAIN WASHER
11/6. [2] 014011-0140 PLAIN WASHER
11/8. [1] 016010-0940 LOCKING WASHER
11/21. [1] 159563-2300 CONTROL LEVER
11/22. [1] 159584-2800 COILED SPRING
11/23. [1] 159563-1800 BUSHING
11/24. [1] 014110-8440 LOCKING WASHER D15.4&8.2T2
11/25. [1] 013030-8140 UNION NUT
11/26. [1] 159563-1000 FLAT-HEAD SCREW
11/27. [1] 139006-9800 FLAT-HEAD SCREW
11/28. [2] 013020-6040 UNION NUT
11/28. [2] 013020-6040 UNION NUT
11/34. [1] 139006-9900 FLAT-HEAD SCREW
12. [2] 020106-4040 BLEEDER SCREW
13. [1] 159561-0700 GOVERNOR COVER
14. [4] 139006-9300 BLEEDER SCREW
15. [2] 139006-9200 BLEEDER SCREW
17. [1] 154371-5600 GASKET
18. [1] 154390-0400 GASKET
19. [1] 154390-0500 GASKET
20. [1] 153021-3120 STOPPING DEVICE
21. [1] 026524-3040 GASKET
22. [1] 029731-4680 EYE BOLT
23. [2] 029341-4130 GASKET
27. [2] 139006-9400 BLEEDER SCREW
50. [1] 159564-3020 COVER
51. [4] 020106-1640 BLEEDER SCREW
80. [1] 159564-9200 TOOTHED GEAR
81. [1] 014111-2420 LOCKING WASHER
82. [1] 013031-2120 UNION NUT
83. [1] 025803-1310 WOODRUFF KEY 13 MM
900S. [1] 025803-1310 WOODRUFF KEY 13 MM
901S. [1] 025803-1610 WOODRUFF KEY 16 MM

Include in #1:

106662-4273 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105952-2731
F 01G 29N 0J5

ACTUATOR
K 14JT ACTUATOR GOV




Information:

Start By:a. remove flywheel
The crankshaft rear seal and wear sleeve must both be removed because they must be replaced as a new set. The new seal set must not be separated.
1. Use a sharp punch and a hammer to put four equally spaced holes in seal (1).2. Install the tip of Tool (A) into the seal, and use the slide hammer to pull it out of the flywheel housing. Change the location of Tool (A) in the seal in order to pull the seal out evenly. 3. Install two 5/8 "-18 NF × 4 in. (102 mm) long bolts (2) to hold the crankshaft rear gear in position.4. Install 5P-7314 Distorter Ring (3) [part of Tooling (B)] in the space where the seal was removed.
Be careful not to damage the crankshaft rear gear.
5. Use 5P-7312 Distorter Ring (4) [part of Tooling (B)] to distort the wear sleeve. Put the end of the distorter in the space where the seal was removed.6. Turn the distorter to cause distortion to the wear sleeve. Move the distorter to another position, and turn the distorter again. Do this procedure until the wear sleeve is loose on the crankshaft.7. Remove the distorter, distorter ring and wear sleeve.Install Crankshaft Rear Seal & Wear Sleeve
The front and rear seals and wear sleeves have different spiral grooves in the seal. Because of this type of design, the front seal group for an engine is different from the rear seal group. If a seal group is installed on the wrong end of the engine, oil can actually be taken out of the engine instead of moving the oil back into the engine.
1. Fasten Tooling (A) to the crankshaft rear gear.2. Use 6V-1541 Quick Cure Primer to clean the outside diameter of the crankshaft rear gear and inside diameter of the wear sleeve in seal assembly (1).3. Put 9S-3265 Retaining Compound on the outside diameter of the crankshaft rear gear and the inside diameter of the wear sleeve in seal assembly (1).
Do not separate the lip-type seal from the wear sleeve. The material in the large lip of the seal can be damaged easily. A scratch or rub (not visible) from a finger can damage the seal enough that it cannot be used. Install the sleeve in the seal. Once there is separation of the sleeve and lip-type seal they cannot be used again and must be replaced with a new seal group. Do not use any type of lubrication during installation of the seal group. If any type of lubrication is used in the installation of the seal group, early seal failure can result.
4. Put seal group (1) in position on Tooling (A). Be sure direction arrows on the seal are the same as crankshaft rotation. 5. Put clean engine oil on the face of washer on nut (2) [part of Tooling (B)] that contacts the installer.6. Install Tooling (B) onto Tooling (A), and install nut (2) [part of Tooling (B)] on the threaded shaft of Tooling
