105952-2231 ZEXEL 9 420 613 382 BOSCH ACTUATOR 9420613382 1059522231

Information actuator

BOSCH 9 420 613 382 9420613382

ZEXEL 105952-2231 1059522231

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-2231 zexel genuine, new aftermarket engine parts with delivery

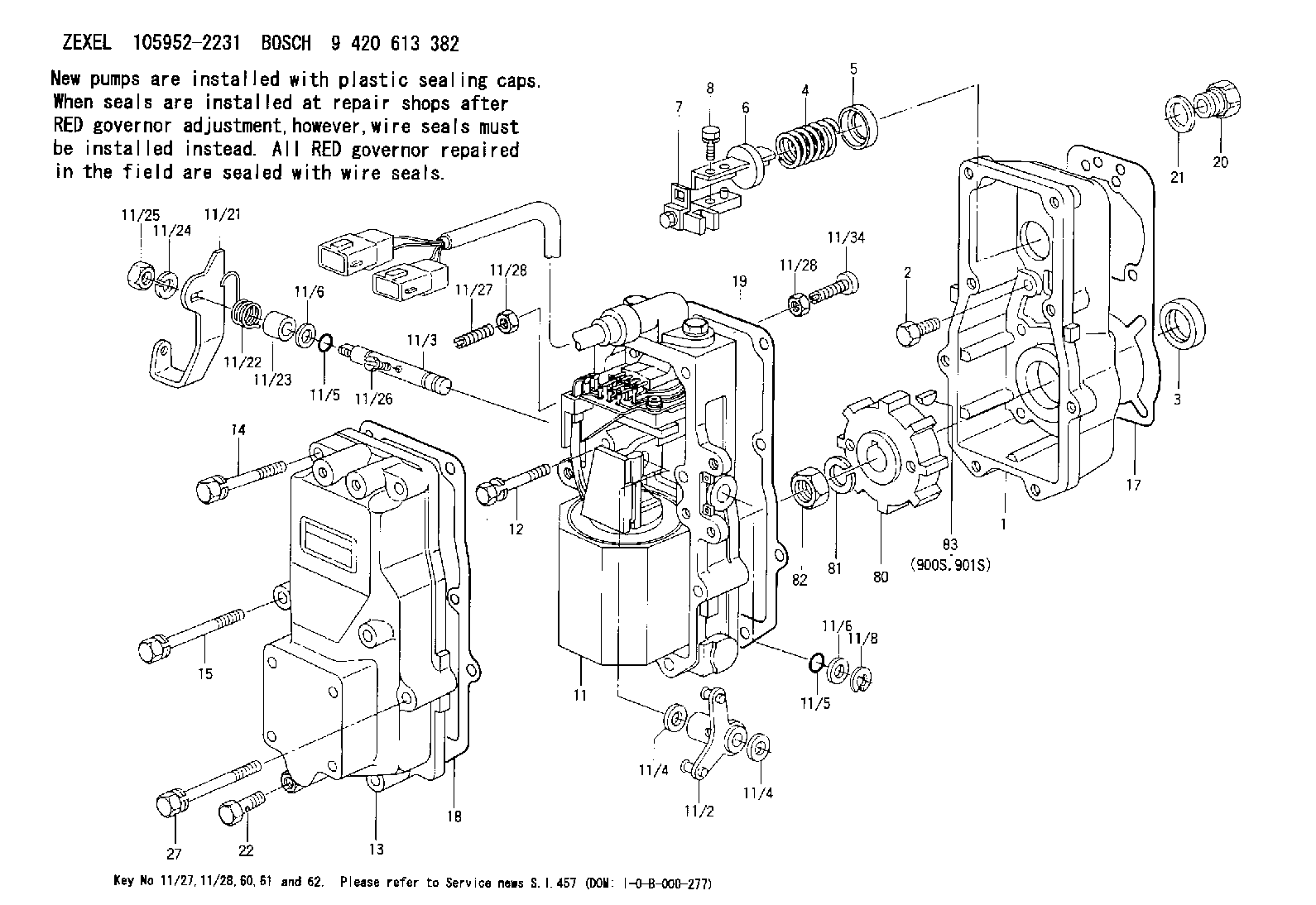

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-5200	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159579-2221	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	139006-9100	BLEEDER SCREW
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/21.	[1]	159563-7120	CONTROL LEVER
11/22.	[1]	159563-4800	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/34.	[1]	159563-8400	FLAT-HEAD SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0820	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	155404-1700	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
27.	[2]	139006-9400	BLEEDER SCREW
80.	[1]	159584-1500	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106871-5582 as GOVERNOR

106871-5592

106871-5602

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-2231

9 420 613 382

ACTUATOR
K 14DJ ACTUATOR
