105952-1862 ZEXEL 9 420 614 545 BOSCH ACTUATOR 9420614545 1059521862 me748133

Information actuator

BOSCH 9 420 614 545 9420614545

ZEXEL 105952-1862 1059521862

MITSUBISHI ME748133 me748133

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1862 zexel genuine, new aftermarket engine parts with delivery

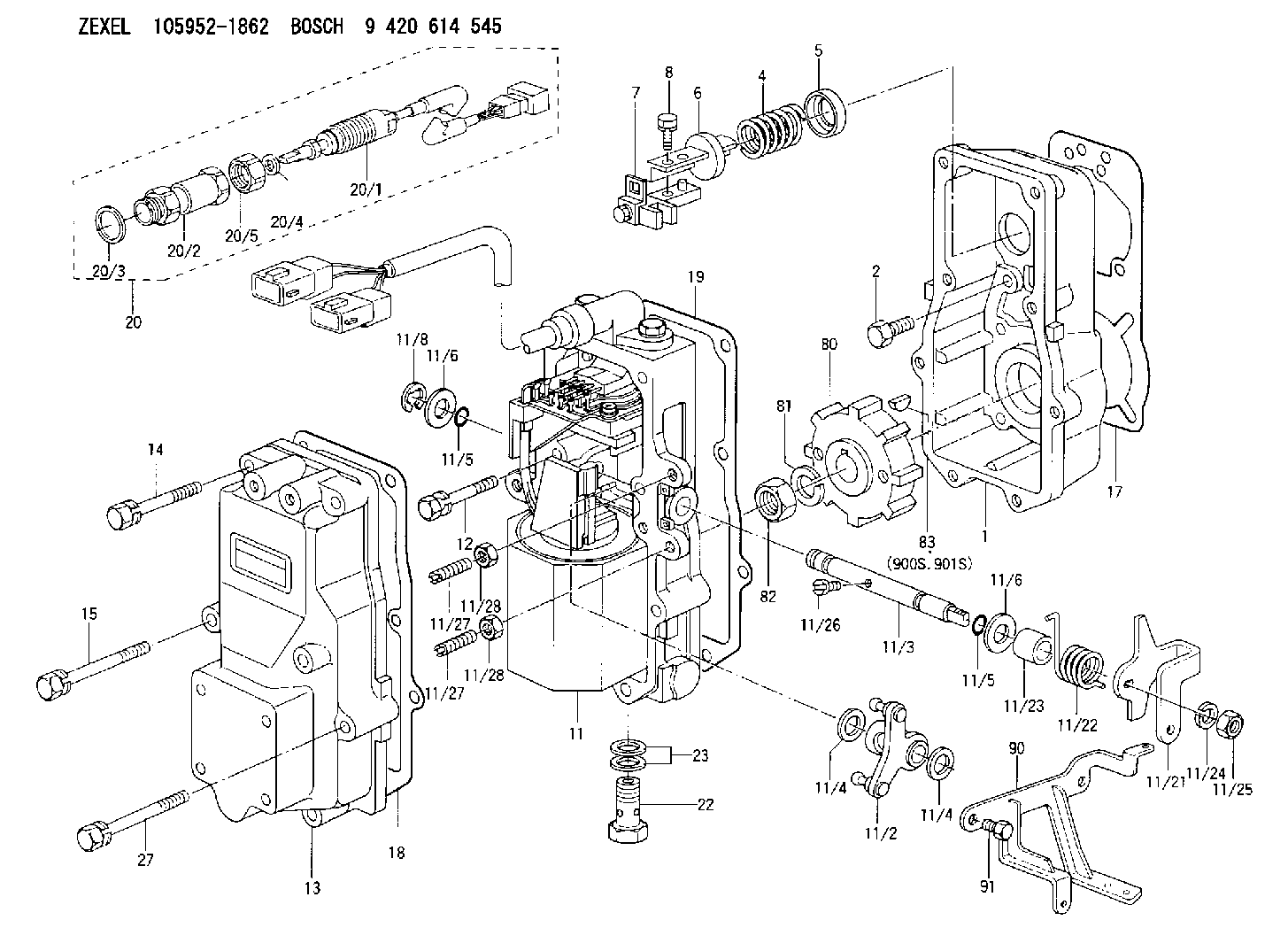

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-6921	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	020106-2540	BLEEDER SCREW M6P1L25
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/21.	[1]	159563-7200	CONTROL LEVER
11/22.	[1]	159563-2000	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0700	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	154611-9620	RACK SENSOR ASSY
20/1.	[1]	479775-5620	RACK SENSOR
20/2.	[1]	154614-4800	JOINT CONNECTION
20/3.	[1]	026524-3040	GASKET
20/4.	[1]	029310-6260	SHIM D11.5&6.4T1.00
20/5.	[1]	154614-1900	UNION NUT
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-9400	BLEEDER SCREW
80.	[1]	159584-2000	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
90.	[1]	159584-4920	BRACKET
91.	[2]	010010-1640	BLEEDER SCREW M10P1.5L16 4T
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-2192 as GOVERNOR

108622-2231

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1862

9 420 614 545

ME748133 MITSUBISHI

ACTUATOR
K

Information:

(1) Torque for the terminal nuts ... 30 3 N m (22 2 lb ft)(2) Torque for the screws that hold the nose housing to the lever housing ... 20 3 N m (15 2 lb ft)Clearance between the pinion and housing (pinion clearance) ... 8.3 to 9.9 mm (.33 to .39 in)8C3651 24V
Rotation as seen from the drive end ... clockwiseNo load conditions: Speed (rpm) ... 7350 1050Current amps ... 60 to 75Voltage ... 23Used with solenoid ... 7T02584N3180 24V, 2P3926 24V
The two 10-32 screws on the underside of the solenoid are tightened to a torque of ... 2 to 3 N m (16 to 30 lb in)Rotation as seen from the drive end ... clockwiseNo load conditions: Speed (rpm) ... 6000 to 8250Current amps ... 155 15Voltage ... 23Used with solenoid ... 3T34213T2647 24V
The two 10-32 screws on the solenoid are tightened to a torque of ... 2.25 0.25 N m (20 2 lb in)The two 1/2-13 nuts on the solenoid are tightened to a torque of ... 31 4 N m (23 3 lb ft)Rotation as seen from the drive end ... clockwiseNo load conditions: Speed (rpm) ... 8130 2130Current amps ... 89 29Voltage ... 23Used with solenoid ... 7T88543T8946 24V
Rotation as seen from the drive end ... clockwiseNo load conditions: Speed (rpm) ... 6500 1000Current amps ... 107.5 12.5Voltage ... 20Used with solenoid ... 7T88549G4338 24V
Rotation as seen from the drive end ... clockwiseMinimum (no load) speed (rpm) ... 6500Current consumption (draw) at 20V (no load) ... 77A(1) Torque for the housing bolts ... 11 N m (8 lb ft)(2) Torque for the terminal nuts ... 27 to 34 N m (20 to 25 lb ft)(3) Clearance between the pinion and housing ... 0.51 to 1.27 mm (.020 to .050 in)Used with solenoid ... 3T86353T6305 24V
Rotation as seen from the drive end ... clockwiseMaximum (no load) speed (rpm) ... 5500Maximum current consumption (draw) (no load) ... 200A(1) Torque for the large terminal nuts ... 27 to 33 N m (20 to 24 lb ft) Torque for the small terminal nuts ... 4 to 5 N m (35 to 45 lb in)(2) Service limit of brushes ... 17.5 mm (.69 in)(3) Service limit of commutater diameter ... 48 mm (1.9 in)Pinion to ring gear clearance ... 1.5 to 5.5 mm (.06 to .22 in)Used with solenoid ... 9X03329X4447 24V
(1) Torque for terminal nuts: Small terminal nuts ... 2.25 .25 N m (20 2 lb ft)Large terminal nuts ... 30.5 3.5 N m (22.5 2.5 lb ft)No load conditions: Speed (rpm) ... 3300Current amps ... 80AVoltage ... 23.5Used with solenoid ... 3E0135
