105952-1844 ZEXEL F 019 Z2F 356 BOSCH ACTUATOR f019z2f356 1059521844

Information actuator

BOSCH F 019 Z2F 356 f019z2f356

ZEXEL 105952-1844 1059521844

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1844 zexel genuine, new aftermarket engine parts with delivery

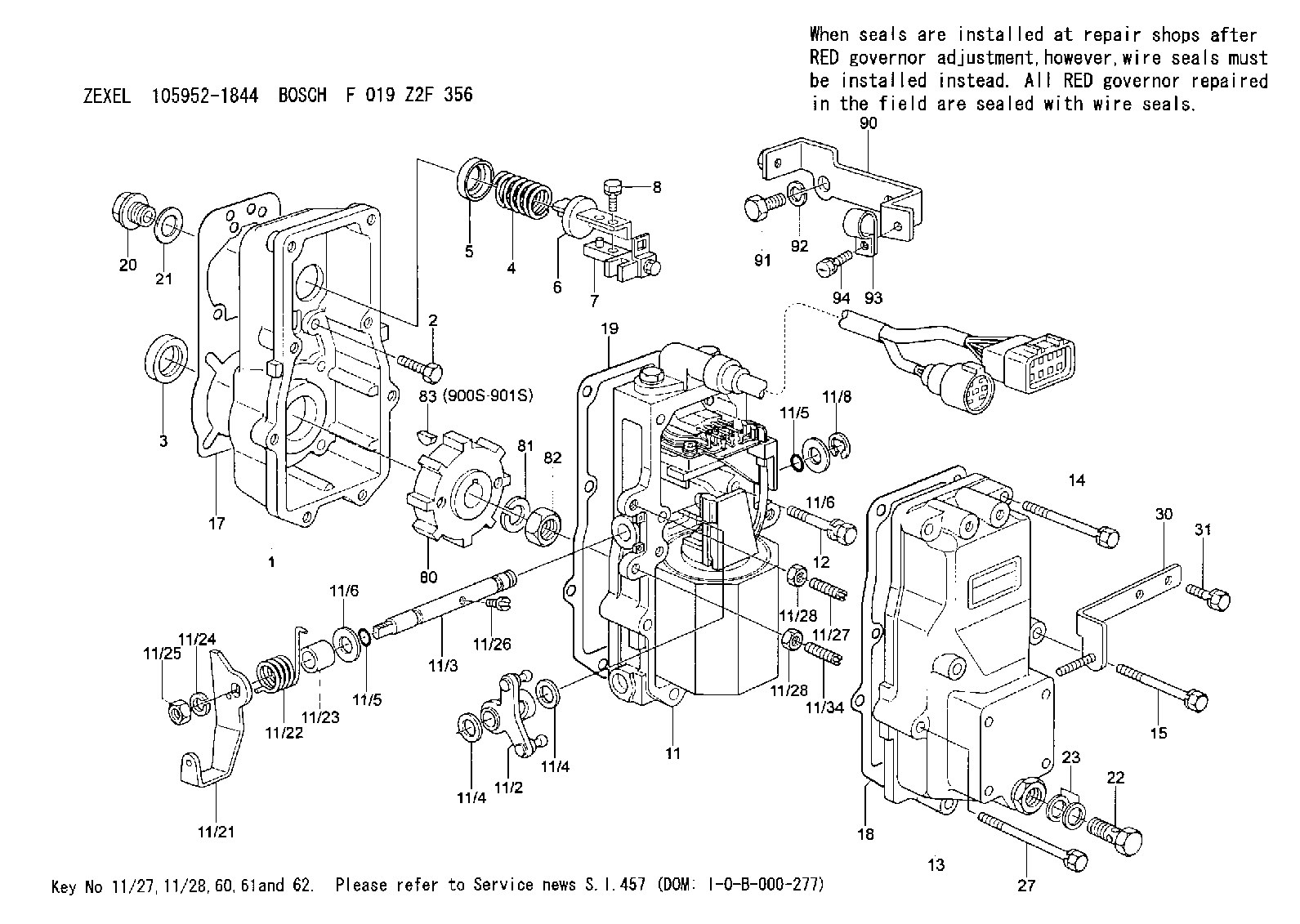

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW
11.	[1]	159569-8722	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER
11/6.	[2]	014011-0140	PLAIN WASHER
11/8.	[1]	016010-0940	LOCKING WASHER
11/21.	[1]	159583-0500	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
11/25.	[1]	013030-8140	UNION NUT
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[1]	139106-1600	FLAT-HEAD SCREW
11/28.	[2]	013020-6040	UNION NUT
11/28.	[2]	013020-6040	UNION NUT
11/34.	[1]	139006-9800	FLAT-HEAD SCREW
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0520	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-6300	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
23.	[2]	139514-0300	GASKET D18.6&14.2T1.6
27.	[2]	139006-9400	BLEEDER SCREW
30.	[1]	159584-4720	BRACKET
31.	[2]	020006-1240	BLEEDER SCREW
80.	[1]	159584-6900	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY 13 MM
90.	[1]	159584-5020	BRACKET
91.	[2]	010010-2040	BLEEDER SCREW
92.	[2]	014111-0440	LOCKING WASHER
93.	[1]	159564-7100	CLAMPING BAND
94.	[1]	020106-1640	BLEEDER SCREW
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

108622-3527 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1844

F 019 Z2F 356

ACTUATOR
K
