Information actuator
BOSCH
9 420 611 079
9420611079
ZEXEL
105952-1791
1059521791
MITSUBISHI
ME742481
me742481

Rating:
Scheme ###:

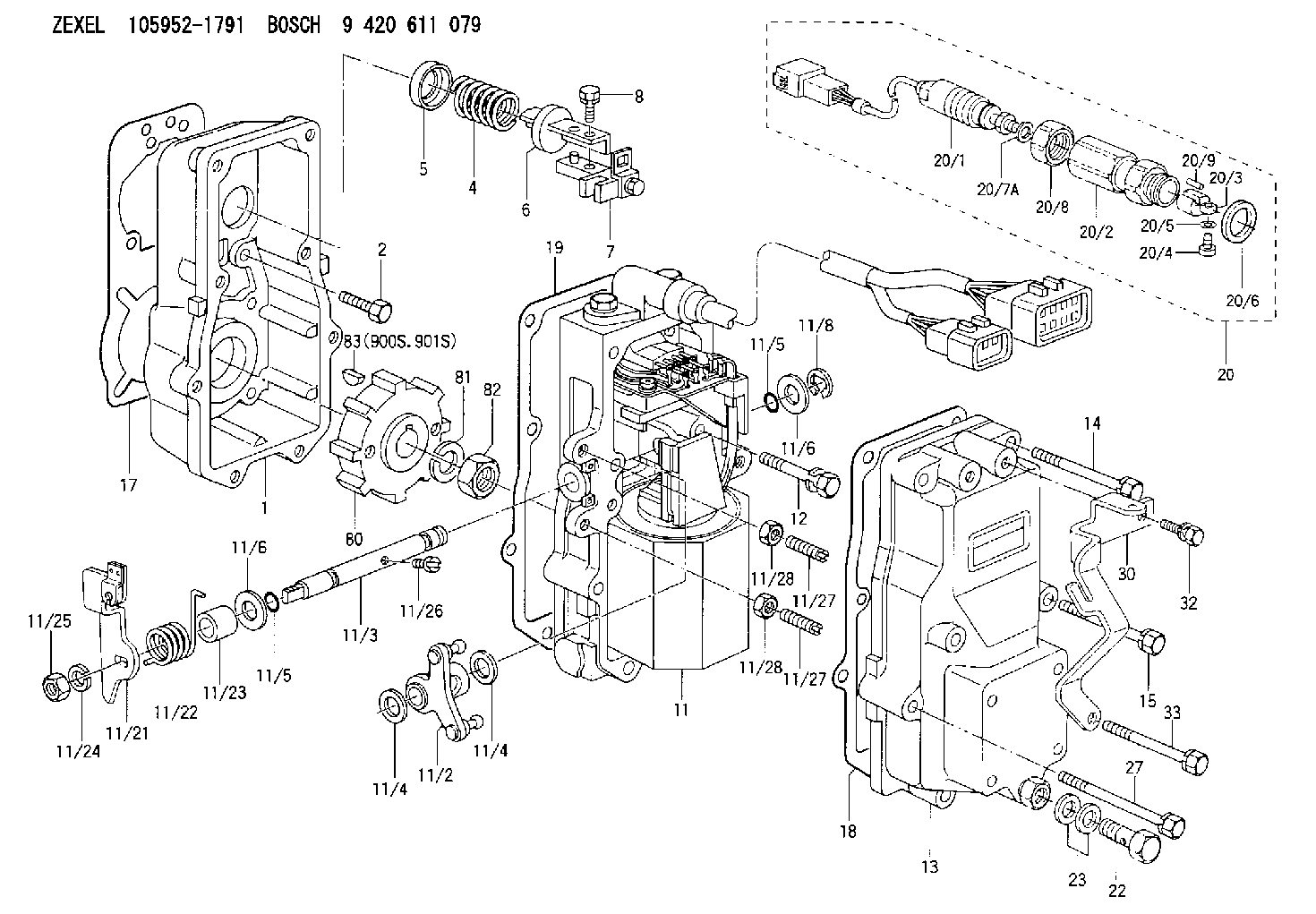

1. | [1] | 159560-0900 | GOVERNOR HOUSING |
2. | [8] | 139006-4100 | BLEEDER SCREW |
4. | [1] | 159564-0000 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159564-4100 | SLOTTED WASHER |
7. | [1] | 159636-3121 | CONNECTOR |
7B. | [1] | 159636-3321 | CONNECTOR |
7C. | [1] | 159636-3521 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
9. | [1] | 159564-0501 | PLATE |
9B. | [1] | 159564-6500 | PLATE |
9C. | [1] | 159584-5200 | PLATE |
10. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159569-8320 | ACTUATOR |
11/2. | [1] | 159583-1020 | STRAP |
11/3. | [1] | 159563-1700 | LEVER SHAFT |
11/4. | [2] | 029311-0170 | SHIM |
11/4. | [2] | 029311-0170 | SHIM |
11/5. | [2] | 016500-0710 | O-RING |
11/5. | [2] | 016500-0710 | O-RING |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/6. | [2] | 014011-0140 | PLAIN WASHER D22&10.5T1.6 |
11/8. | [1] | 016010-0940 | LOCKING WASHER |
11/10. | [4] | 020106-2540 | BLEEDER SCREW M6P1L25 |
11/12. | [4] | 020105-2040 | BLEEDER SCREW M5P0.8L20 |
11/18. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
11/21. | [1] | 159583-0420 | CONTROL LEVER |
11/22. | [1] | 159563-1600 | COILED SPRING |
11/23. | [1] | 159563-1800 | BUSHING |
11/24. | [1] | 014110-8440 | LOCKING WASHER |
11/25. | [1] | 013030-8140 | UNION NUT M8P1.25H5 |
11/26. | [1] | 159563-1000 | FLAT-HEAD SCREW |
11/27. | [2] | 155615-1700 | FLAT-HEAD SCREW |
11/27. | [2] | 155615-1700 | FLAT-HEAD SCREW |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/28. | [2] | 029240-6010 | UNION NUT M6P1.0H5* |
11/32. | [2] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-0920 | GOVERNOR COVER |
14. | [4] | 139006-9300 | BLEEDER SCREW |
15. | [1] | 139006-9200 | BLEEDER SCREW |
16. | [8] | 014110-6440 | LOCKING WASHER |
17. | [1] | 159566-0400 | GASKET |
18. | [1] | 154390-0400 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 154611-5620 | RACK SENSOR ASSY |
20/1. | [1] | 479775-2920 | RACK SENSOR |
20/2. | [1] | 154614-4800 | JOINT CONNECTION |
20/3. | [1] | 154614-3200 | BLOCK |
20/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
20/5. | [1] | 014110-4440 | LOCKING WASHER |
20/6. | [1] | 026524-3040 | GASKET |
20/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
20/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
20/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
20/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
20/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
20/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
20/8. | [1] | 154614-1900 | UNION NUT |
20/9. | [1] | 154614-3300 | BEARING PIN |
22. | [1] | 153556-4800 | EYE BOLT |
23. | [2] | 029331-2120 | GASKET |
27. | [2] | 139006-9400 | BLEEDER SCREW |
30. | [1] | 159584-4501 | BRACKET |
32. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
33. | [1] | 139006-9600 | BLEEDER SCREW |
80. | [1] | 159584-0700 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105952-1791
9 420 611 079
ME742481 MITSUBISHI
ACTUATOR
K 14JD ACTUATOR GOV
K 14JD ACTUATOR GOV
