105952-1790 ZEXEL F 019 Z9E 112 BOSCH ACTUATOR f019z9e112 1059521790 me741602

Information actuator

BOSCH F 019 Z9E 112 f019z9e112

ZEXEL 105952-1790 1059521790

MITSUBISHI ME741602 me741602

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1790 zexel genuine, new aftermarket engine parts with delivery

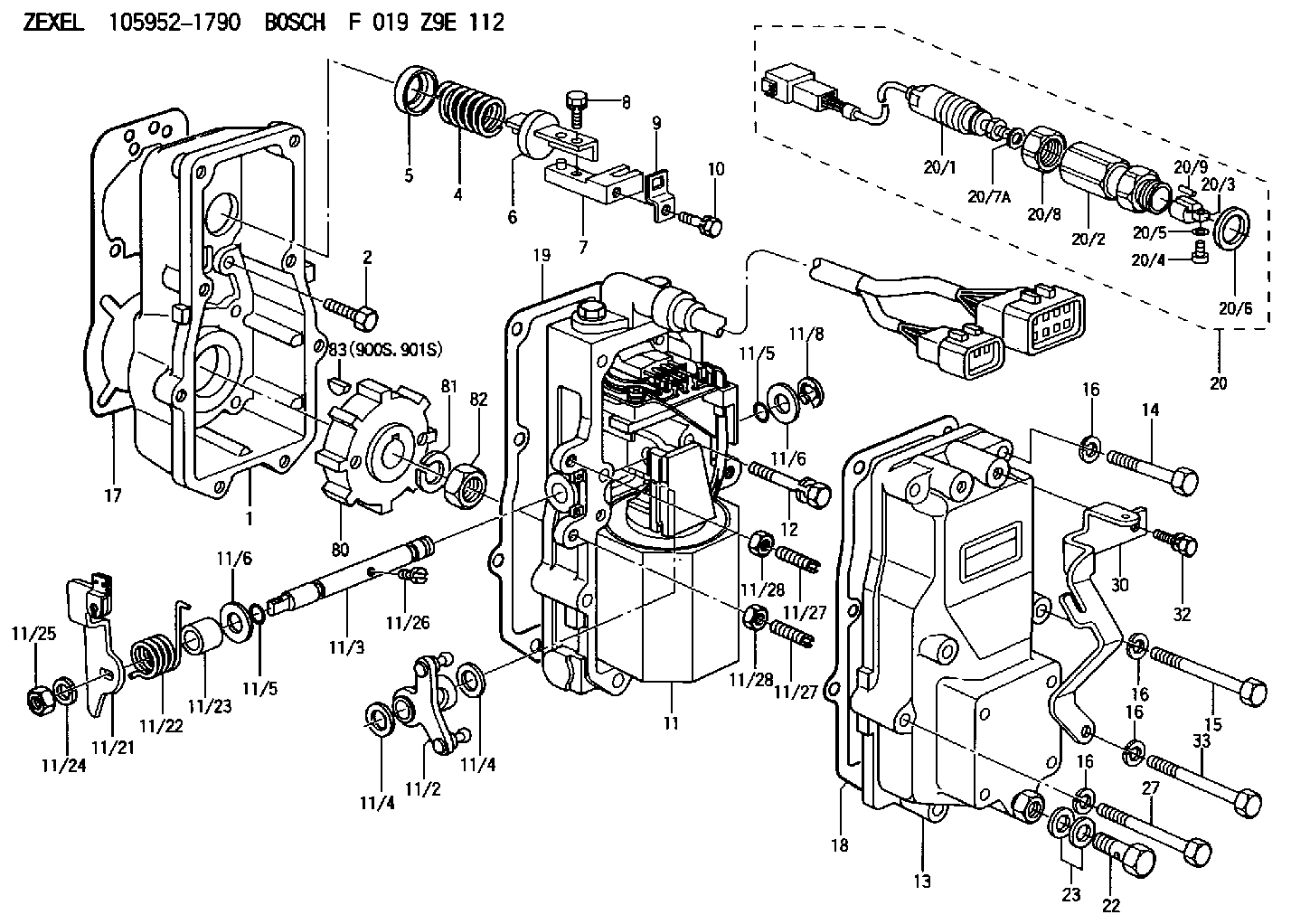

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7320	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-8320	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	020106-2540	BLEEDER SCREW M6P1L25
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/17.	[1]	159587-1620	CABLE SET
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/21.	[1]	159583-0420	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159563-2701	BRACKET
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0920	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[1]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	154611-5620	RACK SENSOR ASSY
20/1.	[1]	479775-2920	RACK SENSOR
20/2.	[1]	154614-4800	JOINT CONNECTION
20/3.	[1]	154614-3200	BLOCK
20/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
20/5.	[1]	014110-4440	LOCKING WASHER
20/6.	[1]	026524-3040	GASKET
20/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
20/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
20/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
20/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
20/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
20/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
20/8.	[1]	154614-1900	UNION NUT
20/9.	[1]	154614-3300	BEARING PIN
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
30.	[1]	159584-4500	BRACKET
32.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
33.	[1]	159563-2400	BLEEDER SCREW
80.	[1]	159584-0700	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108822-2490 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1790
105952-1791

F 019 Z9E 112

ME741602 MITSUBISHI

ACTUATOR
* K

Information:

B. Back out (loosen) the lift adjustment screw 3/4 1/8of a turn.C. Put the nozzle in a vise with 8S2250 Holding Tool (1). Hold pressure adjusting screw (4) and tighten the locknut to a torque of 8.0-8.5 N m (70-75 lb in) using the 2P5487 Adapter (A). Recheck the opening pressure.Adjustment of 9L7883 Nozzles
1. Remove the nozzle from the tester and place in a vise using 8S2250 Nozzle Holding Tool (1). Loosen lift adjusting screw locknut (2). Loosen lift adjusting screw (3) two full turns counterclockwise.
If lift adjusting screw (3) is not loosened, the valve can be damaged in later steps.
2. Loosen pressure adjusting screw (4) and remove the nozzle from the nozzle holding tool. 3. Tilt the nozzle slightly down from the vertical position and remove pressure screw (4) and shims (5). If the shims do not come out of the nozzle, invert the nozzle and let the shims, spring and spring seat fall into the hand. If the valve comes out of its own weight, handle it carefully by its stem.4. To increase the opening pressure, add a 4N5730 Shim. The 4N5730 Shim is 0.13 mm (.005") thick and will increase the opening pressure approximately 1725 kPa (250 psi). A maximum of two shims can be added; if two shims do not increase opening pressure to specification given, discard the nozzle. 5. Assemble the nozzle, making sure the thickest shim (C) is against pressure screw (4). Put the nozzle in a vise using 8S2250 Nozzle Holding Tool (1). Tighten the pressure adjusting screw to 8.0-9.1 N m (70-80 lb in) torque.6. Remove the nozzle from the holding tool. Connect the nozzle, with the tip facing downward, to the tester. Point the nozzle tip into the 8S2270 Fuel Collector and the FT1384 Extension. Check the opening pressure and if it is not within specifications, repeat steps 4 and 5.Valve Lift Adjustment-9L7883 Nozzles
A. When the correct opening pressure is set, and while pumping test fluid through the nozzle, hold the lift adjusting screw locknut and slowly turn the lift adjusting screw clockwise (CW) until valve pressure rises 1380-3450 kPa (200-500 psi) above the nozzle opening pressure. Some test fluid may collect on the tip, but it must not flow at a rapid dribble.
Do not bend the valve by bottoming with too much force.
B. Back out the lift screw 3/4 1/8 turn, hold the lift adjusting screw, and tighten the locknut just enough so the screw will not turn; the lift is now set. C. Put the nozzle in a vise using 8S2250 Holding Tool (1). Tighten the locknut to 4.0-4.5 N m (35-40 lb in). Recheck valve opening pressure.Adjustment of 9L6969, 7N0449, 9N3299, 9N3700, 9N3979, 1W5829, 4W1819, 4W8483 and 7W3710 Nozzles
1. Put the nozzle in a vise using the 8S2250 Holding Tool (1). Loosen lift adjusting screw locknut (2). Turn lift adjusting screw (3) two full turns counterclockwise (CCW). 2. Hold lift adjusting screw (3) with a .08 mm (5/64") hex wrench (4) and
