Information actuator
BOSCH
9 420 611 078
9420611078
ZEXEL
105952-1721
1059521721
MITSUBISHI
ME741672
me741672
Rating:

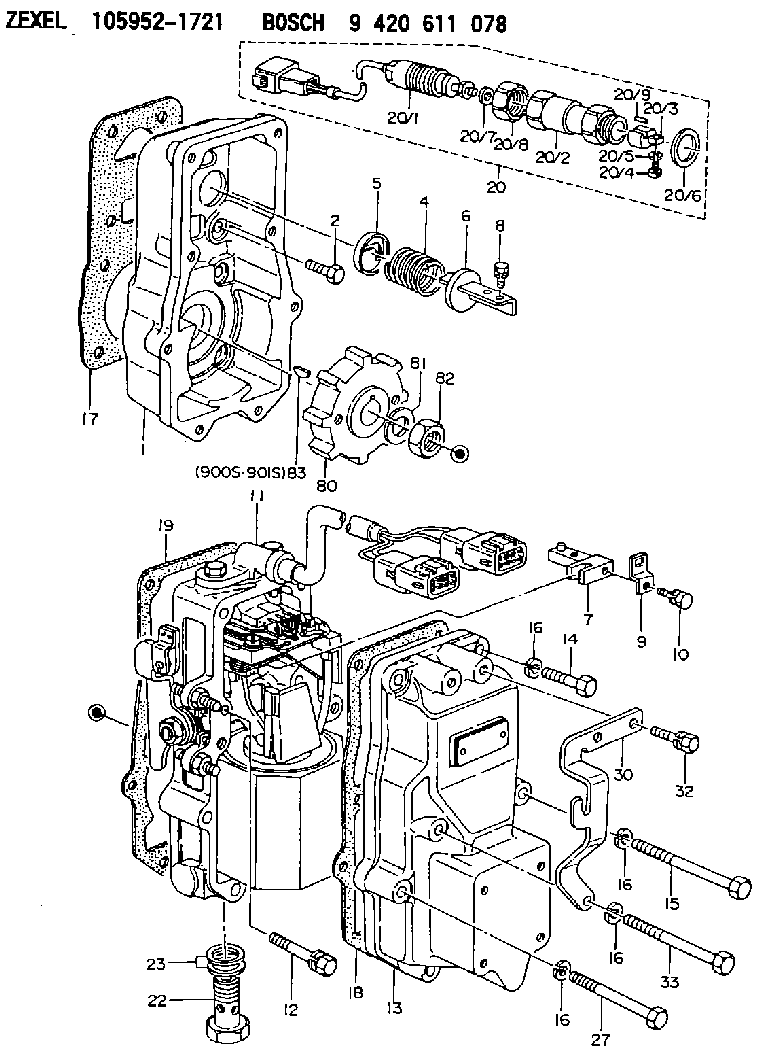

Scheme ###:
| 1. | [1] | 159560-0900 | GOVERNOR HOUSING |
| 2. | [8] | 139006-4100 | BLEEDER SCREW |
| 4. | [1] | 159564-0000 | COILED SPRING |
| 5. | [1] | 159564-4000 | SLOTTED WASHER |
| 6. | [1] | 159564-4100 | SLOTTED WASHER |
| 7. | [1] | 159564-7320 | CONNECTOR |
| 8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 9. | [1] | 159564-0501 | PLATE |
| 10. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 11. | [1] | 159569-7720 | ACTUATOR |
| 12. | [2] | 020106-4040 | BLEEDER SCREW |
| 13. | [1] | 159561-0400 | GOVERNOR COVER |
| 14. | [4] | 010006-7040 | BLEEDER SCREW M6P1L70 |
| 15. | [1] | 010006-5540 | BLEEDER SCREW M6P1L55 4T |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 17. | [1] | 159566-0400 | GASKET |
| 18. | [1] | 154390-0400 | GASKET |
| 19. | [1] | 154390-0500 | GASKET |
| 20. | [1] | 154611-6320 | RACK SENSOR ASSY |
| 20/1. | [1] | 479775-3520 | RACK SENSOR |
| 20/2. | [1] | 154614-4800 | JOINT CONNECTION |
| 20/3. | [1] | 154614-3100 | BLOCK |
| 20/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
| 20/5. | [1] | 014110-4440 | LOCKING WASHER |
| 20/6. | [1] | 026524-3040 | GASKET |
| 20/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
| 20/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
| 20/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
| 20/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
| 20/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
| 20/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
| 20/8. | [1] | 154614-1900 | UNION NUT |
| 20/9. | [1] | 154614-3300 | BEARING PIN |
| 22. | [1] | 153556-4800 | EYE BOLT |
| 23. | [2] | 029331-2120 | GASKET |
| 27. | [2] | 139006-1300 | BLEEDER SCREW M6P1L76 |
| 30. | [1] | 159584-4501 | BRACKET |
| 32. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
| 33. | [1] | 159563-2400 | BLEEDER SCREW |
| 80. | [1] | 159584-0300 | TOOTHED GEAR |
| 81. | [1] | 014111-2420 | LOCKING WASHER |
| 82. | [1] | 013031-2120 | UNION NUT |
| 83. | [1] | 025803-1310 | WOODRUFF KEY |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
