Information actuator
BOSCH
9 420 611 074
9420611074
ZEXEL
105952-1570
1059521570
MITSUBISHI
ME741401
me741401
Rating:

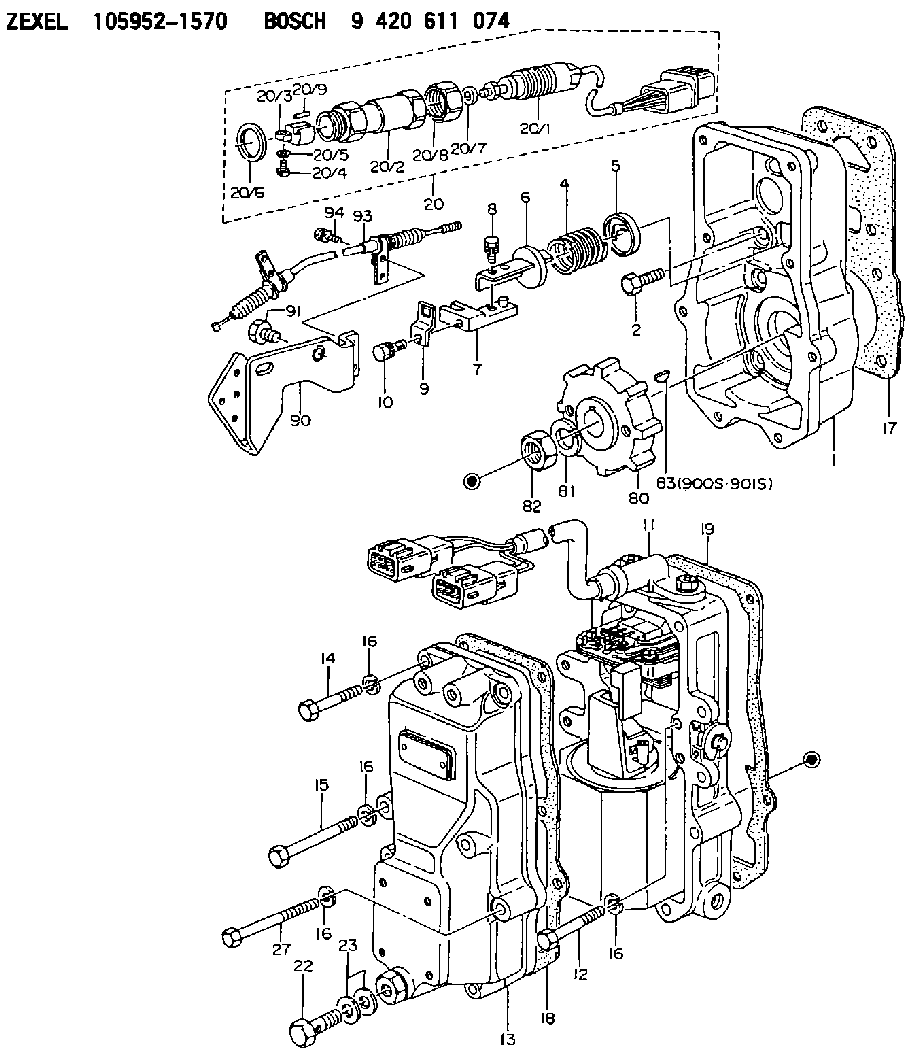

Scheme ###:
| 1. | [1] | 159560-0900 | GOVERNOR HOUSING |
| 2. | [8] | 139006-4100 | BLEEDER SCREW |
| 4. | [1] | 159564-0000 | COILED SPRING |
| 5. | [1] | 159564-4000 | SLOTTED WASHER |
| 6. | [1] | 159564-4100 | SLOTTED WASHER |
| 7. | [1] | 159564-7321 | CONNECTOR |
| 8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 9. | [1] | 159564-0501 | PLATE |
| 10. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
| 11. | [1] | 159569-6320 | ACTUATOR |
| 12. | [2] | 020106-4040 | BLEEDER SCREW |
| 13. | [1] | 159561-0920 | GOVERNOR COVER |
| 14. | [4] | 010006-7040 | BLEEDER SCREW M6P1L70 |
| 15. | [2] | 010006-5540 | BLEEDER SCREW M6P1L55 4T |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 16. | [8] | 014110-6440 | LOCKING WASHER |
| 17. | [1] | 159566-0400 | GASKET |
| 18. | [1] | 154390-0400 | GASKET |
| 19. | [1] | 154390-0500 | GASKET |
| 20. | [1] | 154611-4820 | RACK SENSOR ASSY |
| 20/1. | [1] | 479742-8820 | RACK SENSOR |
| 20/2. | [1] | 154614-4800 | JOINT CONNECTION |
| 20/3. | [1] | 154614-3200 | BLOCK |
| 20/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
| 20/5. | [1] | 014110-4440 | LOCKING WASHER |
| 20/6. | [1] | 026524-3040 | GASKET |
| 20/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
| 20/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
| 20/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
| 20/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
| 20/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
| 20/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
| 20/8. | [1] | 154614-1900 | UNION NUT |
| 20/9. | [1] | 154614-3300 | BEARING PIN |
| 22. | [1] | 153556-4800 | EYE BOLT |
| 23. | [2] | 029331-2120 | GASKET |
| 27. | [2] | 139006-1300 | BLEEDER SCREW M6P1L76 |
| 80. | [1] | 159584-0700 | TOOTHED GEAR |
| 81. | [1] | 014111-2420 | LOCKING WASHER |
| 82. | [1] | 013031-2120 | UNION NUT |
| 83. | [1] | 025803-1310 | WOODRUFF KEY |
| 90. | [1] | 159563-9520 | BRACKET |
| 91. | [2] | 156633-4700 | BLEEDER SCREW |
| 93. | [1] | 159563-9220 | WIRE |
| 94. | [4] | 020106-1040 | BLEEDER SCREW M6P1L12 |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
108822-2330
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
The regulator valve is mounted at the lower portion of the injection pump on the left side of the crankcase. It regulates pressure of engine oil that flows through the oil filter and oil cooler into the main gallery.When oil pressure in the main gallery exceeds specified level the regulator valve opens to return part of engine oil to the oil pan.(5) Lubrication of All PartsThe engine oil routed to the main oil gallery lubricates all parts as described in the following.(a) Main bearing and connecting rod bearing The oil main gallery connects to the crankshaft main bearing through oil holes for lubrication of the main bearing. Part of engine oil that has lubricated the main bearing flows through the oil
