105952-1480 ZEXEL 9 420 611 071 BOSCH ACTUATOR 9420611071 1059521480 me740326

Information actuator

BOSCH 9 420 611 071 9420611071

ZEXEL 105952-1480 1059521480

MITSUBISHI ME740326 me740326

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1480 zexel genuine, new aftermarket engine parts with delivery

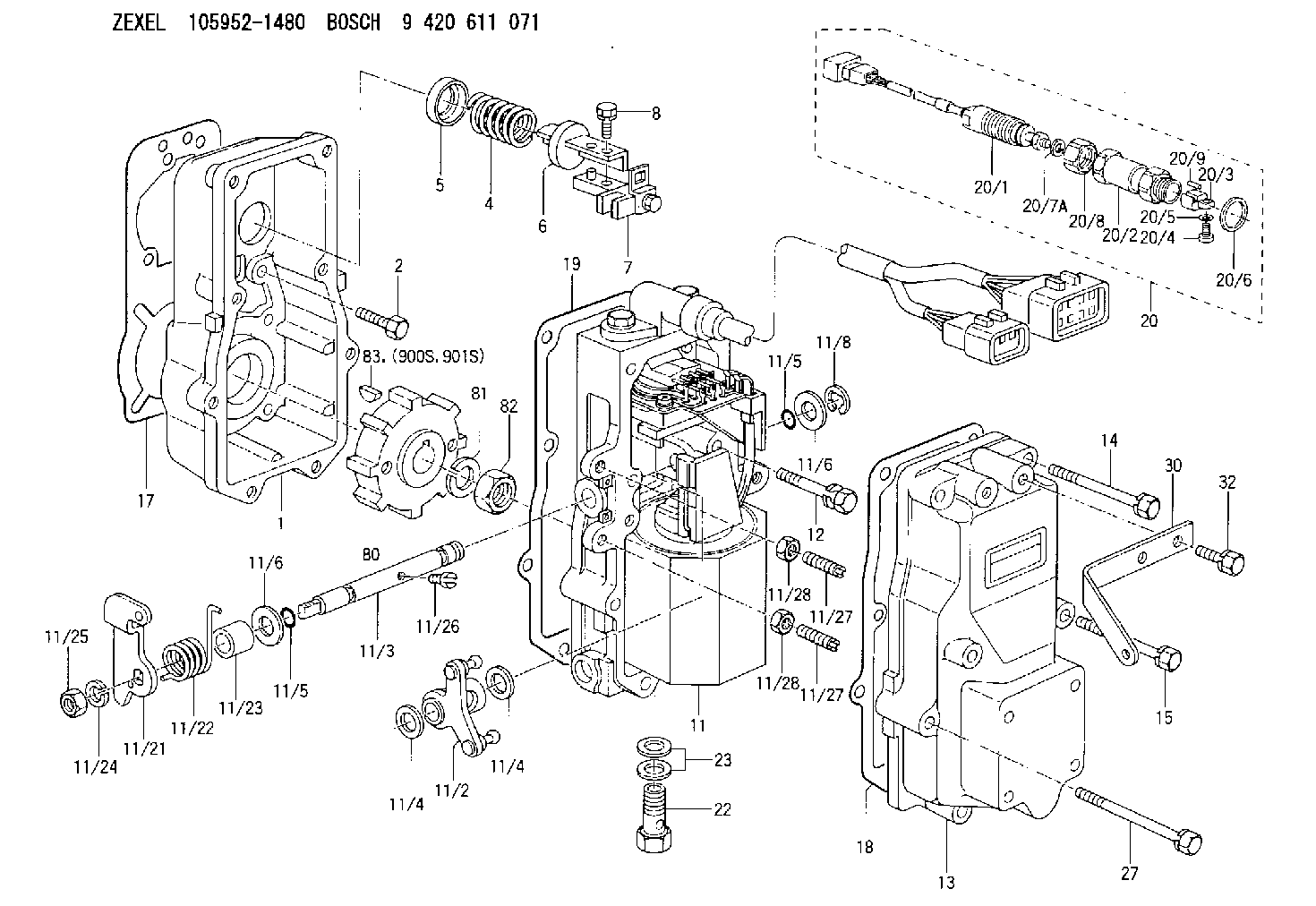

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-5220	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	020106-2540	BLEEDER SCREW M6P1L25
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/21.	[1]	159563-2900	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	154611-5720	RACK SENSOR ASSY
20/1.	[1]	479775-3120	RACK SENSOR
20/2.	[1]	154614-4800	JOINT CONNECTION
20/3.	[1]	154614-3100	BLOCK
20/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
20/5.	[1]	014110-4440	LOCKING WASHER
20/6.	[1]	026524-3040	GASKET
20/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
20/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
20/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
20/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
20/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
20/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
20/8.	[1]	154614-1900	UNION NUT
20/9.	[1]	154614-3300	BEARING PIN
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-9400	BLEEDER SCREW
30.	[1]	159564-5600	BRACKET
32.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
80.	[1]	159584-0400	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108622-2080 as GOVERNOR

108622-2081

108622-2280

108622-2281

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1480

9 420 611 071

ME740326 MITSUBISHI

ACTUATOR
K 14JD ACTUATOR GOV

Information:

1W5634 Gear Group
(1) Fuel pump drive gear.(2) Washer. Assemble with large diameter away from gear.(3) Bolt. With the timing pin and timing bolt correctly installed, put a clockwise force of 70 N m (50 lb ft) on the drive gear for the fuel pump and tighten bolt to ... 270 25 N m (200 20 lb ft)(4) Fuel pump idler gear. End play for the idler gear (new) ... 0.10 to 0.41 mm (.004 to .016 in)Maximum permissible end play (worn) ... 0.86 mm (.034 in)Bore in bearing for the idler gear (new) ... 35.004 0.048 mm (1.3781 .0019 in)Diameter of shaft for idler gear (new) ... 34.902 0.020 mm (1.3741 .0008 in)Clearance between shaft and bearing (new) ... 0.033 to 0.168 mm (.0013 to .0066 in)Maximum permissible clearance between shaft and bearing (worn) ... 0.23 mm (.009 in)(5) Plate. Assemble machined side of plate adjacent to the shaft.(6) Bolt. Tighten to ... 25 7 N m (18 5 lb ft)(7) Camshaft gear.(8) Bolts. Tighten to ... 55 7 N m (40 7 lb ft)(9) Crankshaft gear. Maximum temperature of the gear for installation on the crankshaft ... 316°C (600°F)(10) Idler gear for oil pump.(11) Drive gear for oil pump.2P9642 Gear Group
(1) Fuel pump drive gear.(2) Washer. Assemble with large diameter away from gear.(3) Bolt. With the timing pin and timing bolt correctly installed, put a clockwise force of 70 N m (50 lb ft) on the drive gear for the fuel pump and tighten bolt to ... 149 7 N m (110 5 lb ft)(4) Fuel pump idler gear. End play for the idler gear (new) ... 0.10 to 0.41 mm (.004 to .016 in)Maximum permissible end play (worn) ... 0.86 mm (.034 in)Bore in bearing for the idler gear (new) ... 35.004 0.048 mm (1.3781 .0019 in)Diameter of shaft for idler gear (new) ... 34.902 0.020 mm (1.3741 .0008 in)Clearance between shaft and bearing (new) ... 0.033 to 0.168 mm (.0013 to .0066 in)Maximum permissible clearance between shaft and bearing (worn) ... 0.23 mm (.009 in)(5) Plate. Assemble machined side of plate adjacent to the shaft.(6) Bolt. Tighten to ... 25 7 N m (18 5 lb ft)(7) Camshaft gear.(8) Bolts. Tighten to ... 55 7 N m (40 7 lb ft)(9) Crankshaft gear. Maximum temperature of the gear for installation on the crankshaft ... 316°C (600°F)(10) Idler gear for oil pump.(11) Drive gear for oil pump.
