105952-1200 ZEXEL 9 420 612 212 BOSCH ACTUATOR 9420612212 1059521200 me738603

Information actuator

BOSCH 9 420 612 212 9420612212

ZEXEL 105952-1200 1059521200

MITSUBISHI ME738603 me738603

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-1200 zexel genuine, new aftermarket engine parts with delivery

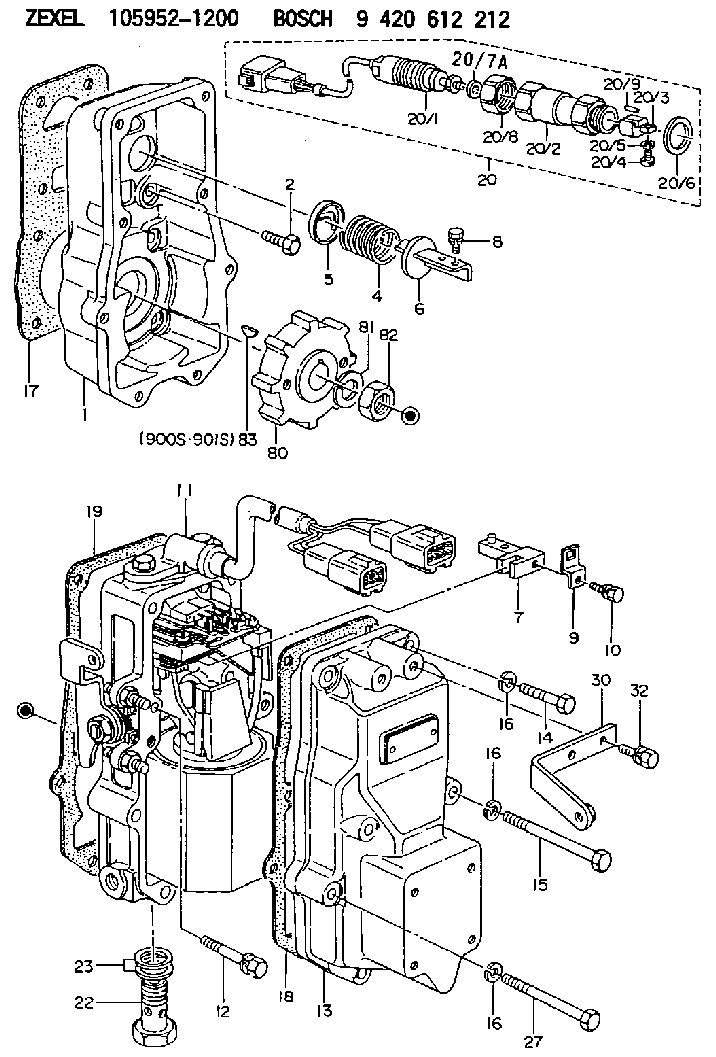

Scheme ###:

1.	[1]	159560-0900	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159569-1520	ACTUATOR
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	159566-0400	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	154610-7021	RACK SENSOR ASSY
20/1.	[1]	479742-4921	RACK SENSOR
20/2.	[1]	154614-4800	JOINT CONNECTION
20/3.	[1]	154614-2900	BLOCK
20/4.	[1]	010234-1040	HEX-SOCKET-HEAD CAP SCREW
20/5.	[1]	014110-4440	LOCKING WASHER
20/6.	[1]	026524-3040	GASKET
20/7A.	[0]	029310-6220	SHIM D11.5&6.5T0.10
20/7B.	[0]	029310-6230	SHIM D11.5&6.5T0.20
20/7C.	[0]	029310-6240	SHIM D11.5&6.5T0.25
20/7D.	[0]	029310-6260	SHIM D11.5&6.4T1.00
20/7E.	[0]	029310-6270	SHIM D11.5&6.4T1.20
20/7F.	[0]	029310-6280	SHIM D11.5&6.4T1.50
20/8.	[1]	154614-1900	UNION NUT
20/9.	[1]	154614-3300	BEARING PIN
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
30.	[1]	159564-5600	BRACKET
32.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
80.	[1]	159584-0300	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

108621-2080 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-1200

9 420 612 212

ME738603 MITSUBISHI

ACTUATOR
K 14JD ACTUATOR GOV

Information:

PARTS NEEDED
Qty
Part Number Description
6 5577633 INJECTOR GP
1 5638152 FILTER-LUBE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Upon failure of an injector or multiple injectors, replace the entire set of fuel injectors with six 5577633 fuel injectors and install a new 5638152 fuel filter.
Refer to Disassembly and Assembly, RENR9579, Unit Injector - Remove, and Unit Injector - Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-4000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
4001-8000 hrs,
25-36 mo 33.0% 50.0% 0.0% 0.0% 50.0% 50.0%
This is a 6.7-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
