Information actuator
BOSCH
9 420 613 871
9420613871
ZEXEL
105952-0940
1059520940
MITSUBISHI
ME731888
me731888

Rating:

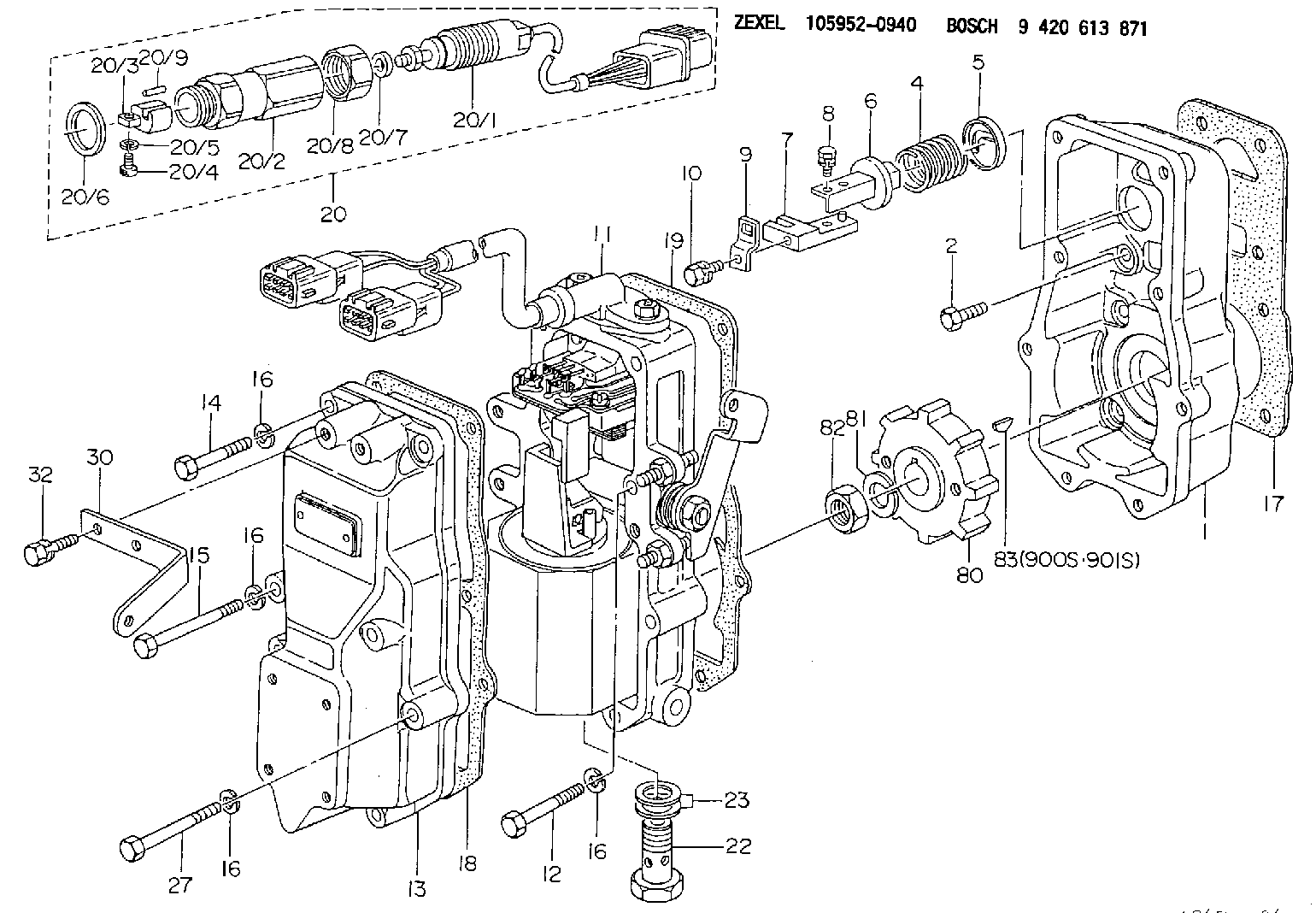

Scheme ###:
1. | [1] | 159560-1200 | GOVERNOR HOUSING |
2. | [8] | 139006-4100 | BLEEDER SCREW |
4. | [1] | 159564-0000 | COILED SPRING |
5. | [1] | 159564-4000 | SLOTTED WASHER |
6. | [1] | 159564-4100 | SLOTTED WASHER |
7. | [1] | 159564-7321 | CONNECTOR |
8. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
9. | [1] | 159564-0501 | PLATE |
9B. | [1] | 159564-6500 | PLATE |
9C. | [1] | 159584-5200 | PLATE |
10. | [1] | 020105-1240 | BLEEDER SCREW M5P0.8L12 |
11. | [1] | 159569-1320 | ACTUATOR |
12. | [2] | 020106-4040 | BLEEDER SCREW |
13. | [1] | 159561-0700 | GOVERNOR COVER |
14. | [4] | 010006-7040 | BLEEDER SCREW M6P1L70 |
15. | [2] | 010006-5540 | BLEEDER SCREW M6P1L55 4T |
16. | [8] | 014110-6440 | LOCKING WASHER |
16. | [8] | 014110-6440 | LOCKING WASHER |
16. | [8] | 014110-6440 | LOCKING WASHER |
16. | [8] | 014110-6440 | LOCKING WASHER |
17. | [1] | 154371-5600 | GASKET |
18. | [1] | 154390-0400 | GASKET |
19. | [1] | 154390-0500 | GASKET |
20. | [1] | 154610-8120 | RACK SENSOR ASSY |
20/1. | [1] | 479742-5720 | RACK SENSOR |
20/2. | [1] | 154614-4800 | JOINT CONNECTION |
20/3. | [1] | 154614-3200 | BLOCK |
20/4. | [1] | 010234-1040 | HEX-SOCKET-HEAD CAP SCREW |
20/5. | [1] | 014110-4440 | LOCKING WASHER |
20/6. | [1] | 026524-3040 | GASKET |
20/7A. | [0] | 029310-6220 | SHIM D11.5&6.5T0.10 |
20/7B. | [0] | 029310-6230 | SHIM D11.5&6.5T0.20 |
20/7C. | [0] | 029310-6240 | SHIM D11.5&6.5T0.25 |
20/7D. | [0] | 029310-6260 | SHIM D11.5&6.4T1.00 |
20/7E. | [0] | 029310-6270 | SHIM D11.5&6.4T1.20 |
20/7F. | [0] | 029310-6280 | SHIM D11.5&6.4T1.50 |
20/8. | [1] | 154614-1900 | UNION NUT |
20/9. | [1] | 154614-3300 | BEARING PIN |
22. | [1] | 153556-4800 | EYE BOLT |
23. | [2] | 029331-2120 | GASKET |
27. | [2] | 139006-1300 | BLEEDER SCREW M6P1L76 |
30. | [1] | 159564-1500 | BRACKET |
32. | [2] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
80. | [1] | 159564-2500 | TOOTHED GEAR |
81. | [1] | 014111-2420 | LOCKING WASHER |
82. | [1] | 013031-2120 | UNION NUT |
83. | [1] | 025803-1310 | WOODRUFF KEY |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106673-2840
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105952-0940
9 420 613 871
ME731888 MITSUBISHI
ACTUATOR
K
K
Information:
(1) Bore in idler gear bearing ... 28.600 0.061 mm (1.1260 .0024 in) Diameter of idler gear shaft ... 28.512 0.013 mm (1.1225 .0005 in)Clearance between bearing and shaft ... .014 to .162 mm (.0011 to .0059 in)(2) Clearance between gear and body of pump ... 0.05 to 0.66 mm (.002 to .026 in)(3) Diameter of shafts for pump ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for shafts ... 22.286 0.051 mm (.8774 .0020 in)Clearance between shafts and bearings ... .013 to .125 mm (.0010 to .0050 in)(4) Depth that bearings are installed in pump bodies ... 1.52 0.25 mm (.060 .010 in)(5) Length of gears ... 50.808 0.025 mm (2.0003 0.0010 in) Depth of bore in pump body for gears ... 50.935 0.020 mm (2.0053 0.0008 in)Clearance between end of gears and pump body ... 0.081 to 0.173 mm (.0032 to .0068 in)(6) Length of gears ... 38.070 0.025 mm (1.4988 0.0010 in) Depth of bore in pump body for gears ... 38.197 0.020 mm (1.5038 0.0008 in)Clearance between end of gears and pump body ... 0.081 to 0.173 mm (.0032 to .0068 in)(7) Distance from the end of the idler shafts to gear faces ... 21.03 0.13 mm (.828 .005 in) Maximum temperature of gear when shrinking in place ... 400°C (750°F)(8) Distance from the end of the drive shaft to gear face ... 38.23 0.13 mm (1.505 0.005 in) Maximum temperature of gear when shrinking in place ... 400°C (750°F)(9) Torque for bolt holding drive gear to drive shaft ... 47 9 N m (35 7 lb ft) Install the bearings in the cover and body for the oil pump so the bearing junctions (joints) are in the position shown.(10) Distance dowel extends from body ... 4.1 0.5 mm (.16 .02 in)(11) Shaft assembly. Distance shaft assembly extends from body ... 30.50 0.25 mm (1.201 0.010 in)
Section A-A
Oil Pump Bypass Spring(12) 115-7545 Spring: Length under test force ... 22.22 mm (.875 in)Test force ... 780 N (175 lb)Free length after test ... 25.4 mm (1.00 in)Outside diameter ... 18.54 mm (.730 in) Before running, lubricate pump with oil. Pump must rotate freely by hand.
Section A-A
Oil Pump Bypass Spring(12) 115-7545 Spring: Length under test force ... 22.22 mm (.875 in)Test force ... 780 N (175 lb)Free length after test ... 25.4 mm (1.00 in)Outside diameter ... 18.54 mm (.730 in) Before running, lubricate pump with oil. Pump must rotate freely by hand.
