105952-0710 ZEXEL 9 420 613 653 BOSCH ACTUATOR 9420613653 1059520710 me727884

Information actuator

BOSCH 9 420 613 653 9420613653

ZEXEL 105952-0710 1059520710

MITSUBISHI ME727884 me727884

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0710 zexel genuine, new aftermarket engine parts with delivery

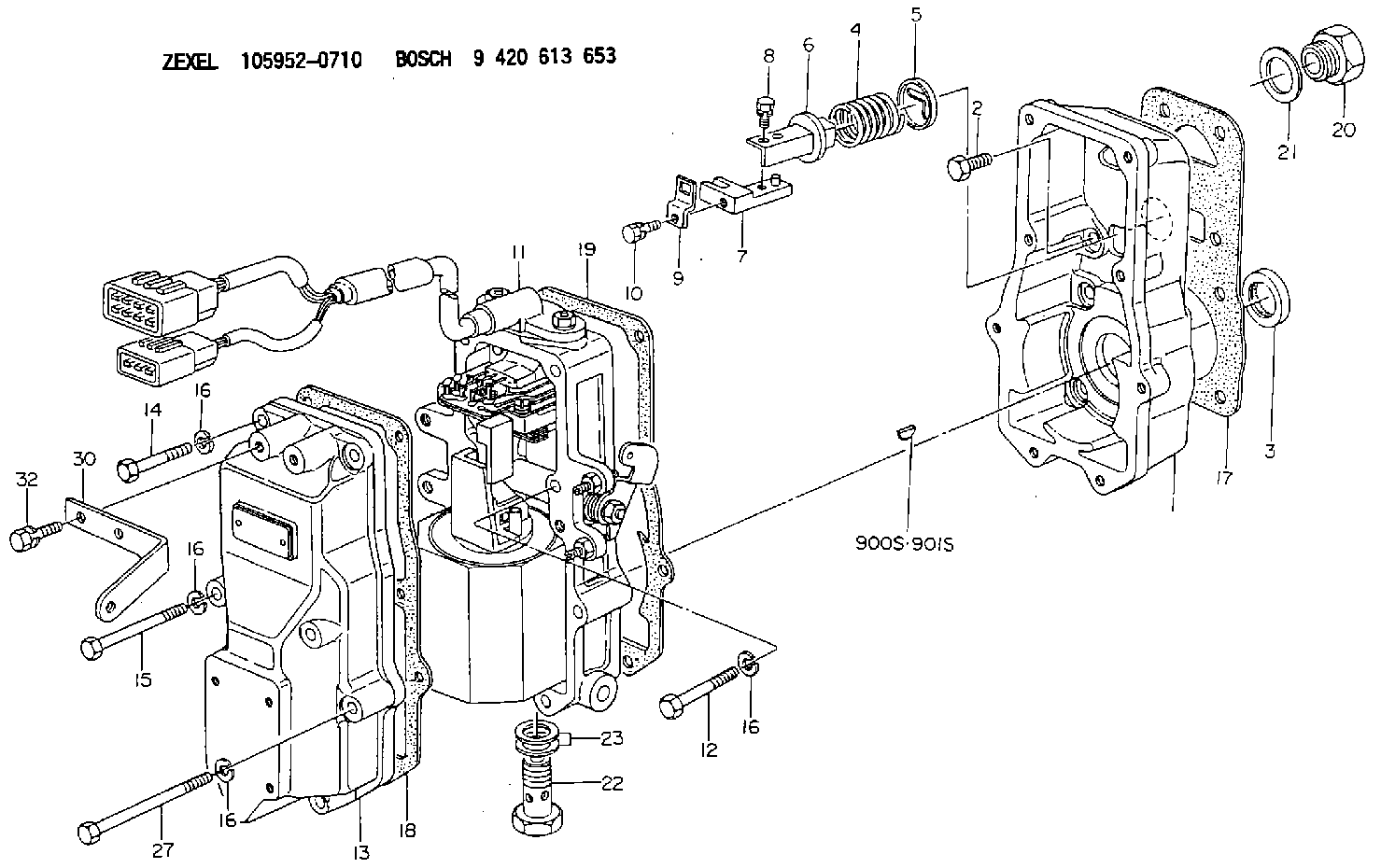

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159564-7321	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
9.	[1]	159564-0501	PLATE
9B.	[1]	159564-6500	PLATE
9C.	[1]	159584-5200	PLATE
10.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-8822	ACTUATOR
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0700	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	155404-1700	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
30.	[1]	159564-1500	BRACKET
32.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-2160 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0710

9 420 613 653

ME727884 MITSUBISHI

ACTUATOR
K

Information:

TERMINATION DATE
30Sep2015
PROBLEM
The existing 375-5244 or early production 379-0150 common rail fuel injection pumps may fail on certain 336E Excavators. If the existing common rail fuel injection pump fails the engine may exhibit no start, hard starting or loss of power.
AFFECTED PRODUCT
Model Identification Number
336E L BZY00328, 409, 432, 434, 440, 459, 534, 536, 792, 875, 1266, 1319, 1321, 1335
PARTS NEEDED
Qty
Part Number Description
1 6V8260 SEAL-O-RING
1 2287102 SEAL-O-RING-STOR
1 3790150 PUMP GP-FUEL
1 4154991 VALVE AS-RELIEF
1 4286096 KIT-F PUMP LINE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
1. Refer to Special Instruction, REHS5023, "Replacing the Fuel Injection Pump on Certain C9.3 Engines". Replace the existing 375-5244 or early production 379-0150 common rail fuel injection pump with the new production 379-0150 common rail fuel injection pump and new gasket 6V-8260. Install a new 356-5214 fuel line from the common rail fuel injection pump to the fuel rail.
2. Refer to C9.3 Disassembly and Assembly, KENR8149 "Engines for Caterpillar Built Machines". Replace the prior 362-0770 Pressure Relief Valve with 415-4991 Pressure Relief Valve, and 228-7102 O-ring.
3. Refer to Service Magazine, SEPD1928, "An Improved Fuel Injection Pump Group Is Used on Certain C9.3 Machine Engines", in order to record the common rail fuel injection pump serial number. This serial number must be entered into the containment service letter claim story.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-5000 hrs,
0-48 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 12.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
