105952-0370 ZEXEL F 019 Z5E 962 BOSCH ACTUATOR f019z5e962 1059520370 me723357

Information actuator

BOSCH F 019 Z5E 962 f019z5e962

ZEXEL 105952-0370 1059520370

MITSUBISHI ME723357 me723357

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0370 zexel genuine, new aftermarket engine parts with delivery

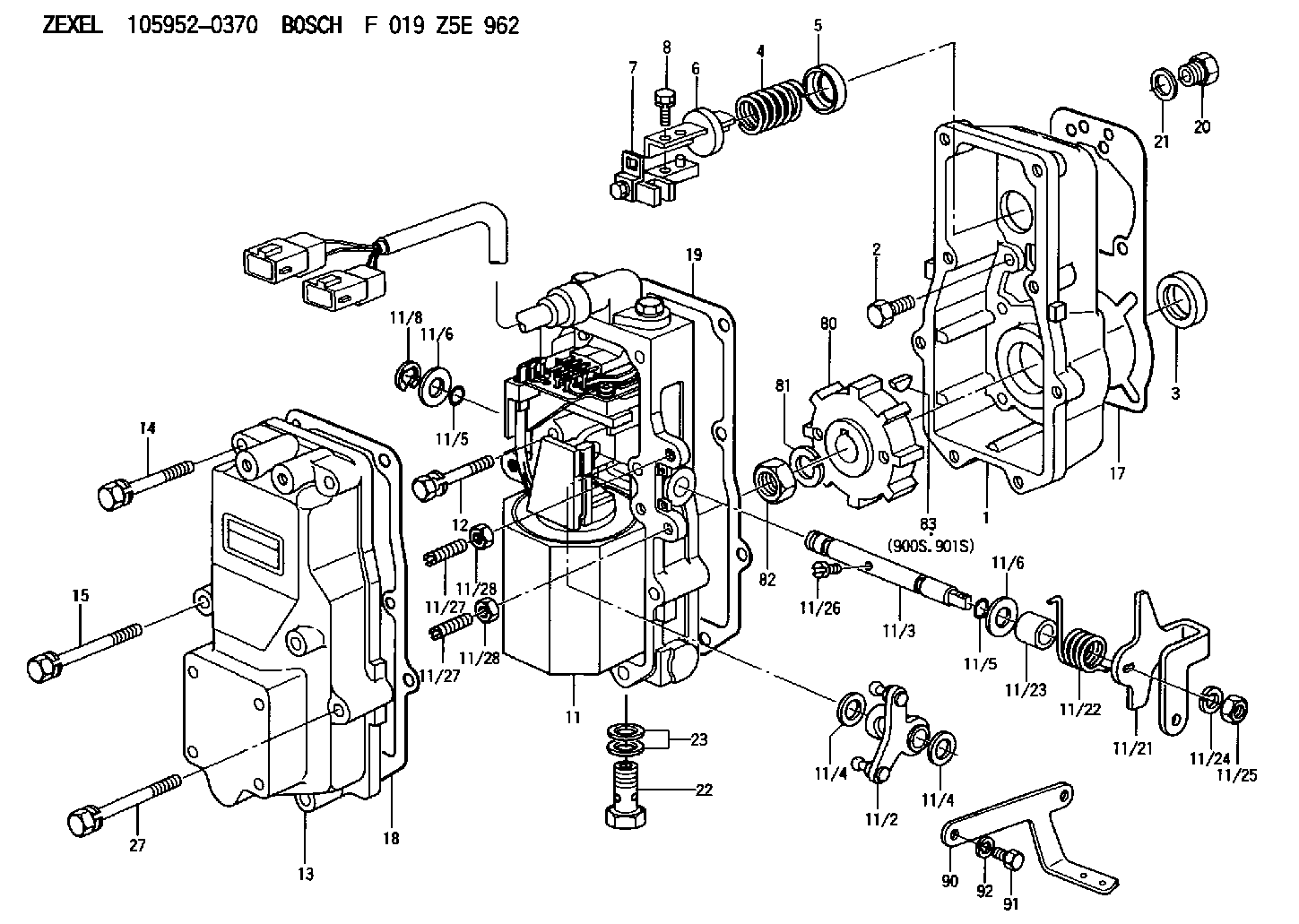

Scheme ###:

1.	[1]	159560-0100	GOVERNOR HOUSING
2.	[8]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-1022	ACTUATOR
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/10.	[4]	020106-2540	BLEEDER SCREW M6P1L25
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/17.	[1]	159568-1020	CABLE SET
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/21.	[1]	159563-3000	CONTROL LEVER
11/22.	[1]	159563-2000	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159563-2701	BRACKET
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	139006-9300	BLEEDER SCREW
15.	[2]	139006-9200	BLEEDER SCREW
17.	[1]	154371-5600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	155404-1700	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	153556-4800	EYE BOLT
23.	[2]	029331-2120	GASKET
27.	[2]	139006-9400	BLEEDER SCREW
80.	[1]	159564-2500	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
90.	[1]	159564-2800	BRACKET
91.	[2]	139016-0100	BLEEDER SCREW
92.	[2]	014111-6440	LOCKING WASHER
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-7800 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0370

F 019 Z5E 962

ME723357 MITSUBISHI

ACTUATOR
K 14JT ACTUATOR GOV

Information:

Problem
Certain 776B Tractors and 777B trucks may experience problems during cold starts. An Automatic Ether Injection System (AEIS) can be installed to improve starting and combustion during cold startups and increase the service life of the engine.
Affected Product
Model & Identification Number
776B (6JC1-83)
777B (4YC1-1383)
Parts Needed
2 - 3B6768 Bushing2 - 4N4274 Washer8 - 8C5607 Mount1 - 8C9006 Tee1 - 8C9812 Switch1 - 4D7794 Clip3 - 6D1641 Clip1 - 9D5659 Boss1 - 3E4930 Plate1 - 8E1415 Valve Assembly4 - 5G6966 Spacer4 - 9G3695 Plug5 - 9G9150 Clip1 - 9G9152 Clip3 - 9G9154 Clip1 - 9G9813 Alarm Group1 - 3J1907 Seal1 - 3J5390 Plug3 - 4K6177 Clip2 - 6K8180 Grommet1 - 4L6454 Bolt13 - 5M3062 Bolt8 - 9M8406 Clip3 - 7N0140 Tube Assembly2 - 7N9737 Housing2 - 7N9738 Housing1 - 8N1523 Lockwasher2 - 5P0598 Clamp2 - 5P2948 Connector1 - 5P4325 Clip4 - 5p6313 Nut4 - 5P6314 Sleeve1 - 5P6315 Elbow20 - 3S2093 Strap1 - 3T3046 Clip Assembly2 - 3T3048 Clip Assembly2 - 3T3133 Switch1 - 6T4361 Sensor8 - 8T4224 Washer14 - 8T4896 Washer8 - 8T9043 Bolt4 - 6V2686 Clip2 - 6V5066 Seal1 - 6V6809 Seal4 - 2W9499 Bolt1 - 8W8171 Tube1 - 8W8172 Tube1 - 8W8174 Tube2 - 7X0459 Screw1 - 7X0790 Tag2 - 7X1062 Cylinder Assembly2 - 7X1063 Orifice2 - 7X1078 Nozzle Assembly1 - 8X0912 Tube2 - 8X3708 Lamp Assembly1 - 8X3710 Plate Assembly1 - 8X5003 Harness Assembly2 - 8X5012 Plate1 - 8X5013 Wire Assembly1 - 8X5014 Wire Assembly1 - 8X5018 Harness Assembly1 - 8X5020 Plate Assembly2 - 8X5048 Bracket Assembly1 - 8X5415 Wire Assembly1 - 8X7107 Harness Assembly1 - 8X7433 Harness Assembly1 - 8X8386 Wire Assembly2 - 9X0147 Collar1 - 9X0377 Control Group1 - 9X3271 Adapter1 - 9X3495 Clip Assembly1 - 9X4542 Film1 - 9X5303 Control Group4 - 9X6165 Washer1 - 9X6191 Film2 - 9X7137 Valve Assembly2 - 6Y9788 Plate1 - SEHS9241 - Operator Instruction Card **This card is to remain in the cab in a visible location for reference use by the operator.Action Required
If so equipped, remove the existing manual type ether injection system.
Follow the procedure in Special Instruction SEHS9329 "Installation of Automatic Ether Injection System (AEIS)" and install the Automatic Ether Injection System (AEIS).
Service Claim Allowances
This is a 6-hour job.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
