105952-0301 ZEXEL F 019 Z3E 393 BOSCH ACTUATOR f019z3e393 1059520301

Information actuator

BOSCH F 019 Z3E 393 f019z3e393

ZEXEL 105952-0301 1059520301

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy ACTUATOR 105952-0301 zexel genuine, new aftermarket engine parts with delivery

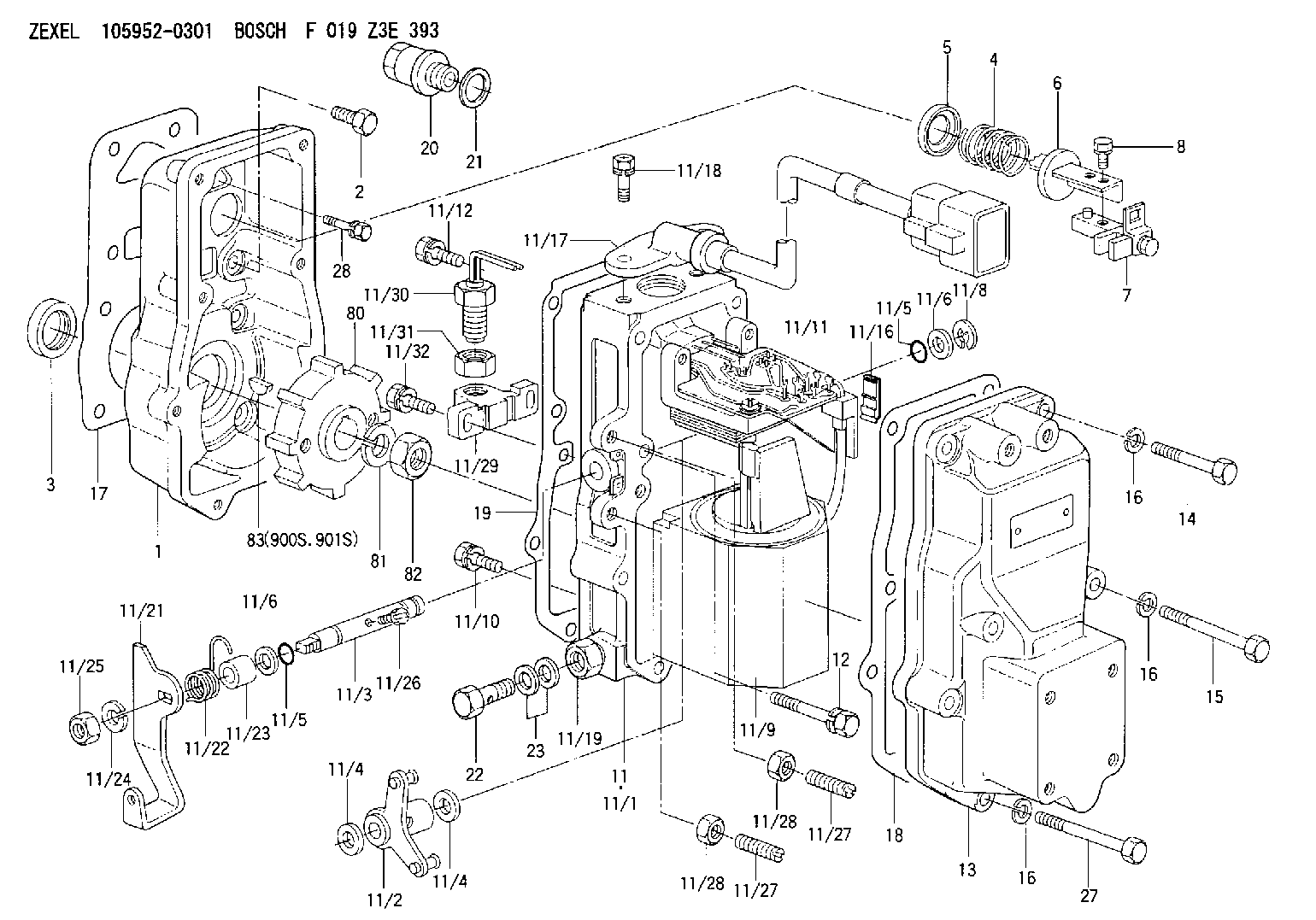

Scheme ###:

1.	[1]	159560-0820	GOVERNOR HOUSING
2.	[7]	139006-4100	BLEEDER SCREW
3.	[1]	029621-7050	PACKING RING
4.	[1]	159564-0000	COILED SPRING
5.	[1]	159564-4000	SLOTTED WASHER
6.	[1]	159564-4100	SLOTTED WASHER
7.	[1]	159636-3121	CONNECTOR
7B.	[1]	159636-3321	CONNECTOR
7C.	[1]	159636-3521	CONNECTOR
8.	[1]	020105-1240	BLEEDER SCREW M5P0.8L12
11.	[1]	159567-0822	ACTUATOR
11/1.	[1]	159562-0720	PLATE;GOV.
11/2.	[1]	159583-1020	STRAP
11/3.	[1]	159563-1700	LEVER SHAFT
11/4.	[2]	029311-0170	SHIM
11/4.	[2]	029311-0170	SHIM
11/5.	[2]	016500-0710	O-RING
11/5.	[2]	016500-0710	O-RING
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/6.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
11/8.	[1]	016010-0940	LOCKING WASHER
11/9.	[1]	159585-0720	LINEAR DC MOTOR
11/10.	[4]	139006-9100	BLEEDER SCREW
11/11.	[1]	159566-0720	RACK SENSOR
11/12.	[4]	020105-2040	BLEEDER SCREW M5P0.8L20
11/16.	[1]	159565-2400	LIP
11/17.	[1]	159568-0721	CABLE SET
11/18.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
11/19.	[1]	134002-0200	ADAPTOR
11/21.	[1]	159563-2500	CONTROL LEVER
11/22.	[1]	159563-1600	COILED SPRING
11/23.	[1]	159563-1800	BUSHING
11/24.	[1]	014110-8440	LOCKING WASHER
11/25.	[1]	013030-8140	UNION NUT M8P1.25H5
11/26.	[1]	159563-1000	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/27.	[2]	155615-1700	FLAT-HEAD SCREW
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/28.	[2]	029240-6010	UNION NUT M6P1.0H5*
11/29.	[1]	159563-2701	BRACKET
11/30.	[1]	479749-2400	PULSE GENERATOR
11/31.	[1]	159592-0300	UNION NUT
11/32.	[2]	020106-1440	BLEEDER SCREW M6P1.0L14
12.	[2]	020106-4040	BLEEDER SCREW
13.	[1]	159561-0400	GOVERNOR COVER
14.	[4]	010006-7040	BLEEDER SCREW M6P1L70
15.	[2]	010006-5540	BLEEDER SCREW M6P1L55 4T
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
16.	[8]	014110-6440	LOCKING WASHER
17.	[1]	154390-1600	GASKET
18.	[1]	154390-0400	GASKET
19.	[1]	154390-0500	GASKET
20.	[1]	153021-6300	CAP
21.	[1]	026524-3040	GASKET
22.	[1]	029731-4680	EYE BOLT
23.	[2]	029331-4230	GASKET
27.	[2]	139006-1300	BLEEDER SCREW M6P1L76
28.	[1]	139006-5800	BLEEDER SCREW
80.	[1]	159584-0000	TOOTHED GEAR
81.	[1]	014111-2420	LOCKING WASHER
82.	[1]	013031-2120	UNION NUT
83.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106672-0034 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105952-0301

F 019 Z3E 393

ACTUATOR
K

Information:

Caterpillar: Confidential Yellow
PSP FOR INSTALLING NEW FUEL INJECTION LINE BRACKETS AND CLAMPS ON CERTAIN D8L TRACTORS, D9N TRACTORS, 589 PIPELAYERS, 631E SCR APERS, 637E SCRAPERS, 657E SCRAPERS, 768C TRACTORS, 769C TRUCKS, 834B TRACTORS, AND 988B LOADERS - PS4428 - MAILED US AND CA NADA, CACO, COFA, BRAZIL, CFEL, COSA
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-63 A-35 AU-38 B-13 E-39 O-54 1252 PS4428 This Program can be administered either before or after a failure. In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS4428" as Part Number, "7755" as Group Number, and "96" as Description Code. Termination Date
March 31, 1991
Problem
The fuel lines on certain D8L Tractors, D9N Tractors, 589 Pipelayers, 631E Scrapers, 637E Scrapers, 657E Scrapers, 768C Tractors, 769C Trucks, 834B Tractors, and 988B Loaders may fail. New brackets and clamps can be installed to increase the service life of the fuel injection lines.
Affected Product
Model Identification Number D8L 7YB962 7JC778 D9N 1JD1288, 1295, 1296, 1298-1356, 1358, 1361-2039, 2045, 2048, 2049, 2052 589 31Z423-452 631E 1AB965-1198, 1209 637E 1FB361-416, 418, 422 1JB612-724 657E
